  View:Evaporator

R-1001-LN

 CHARACTERISTICS OF USES

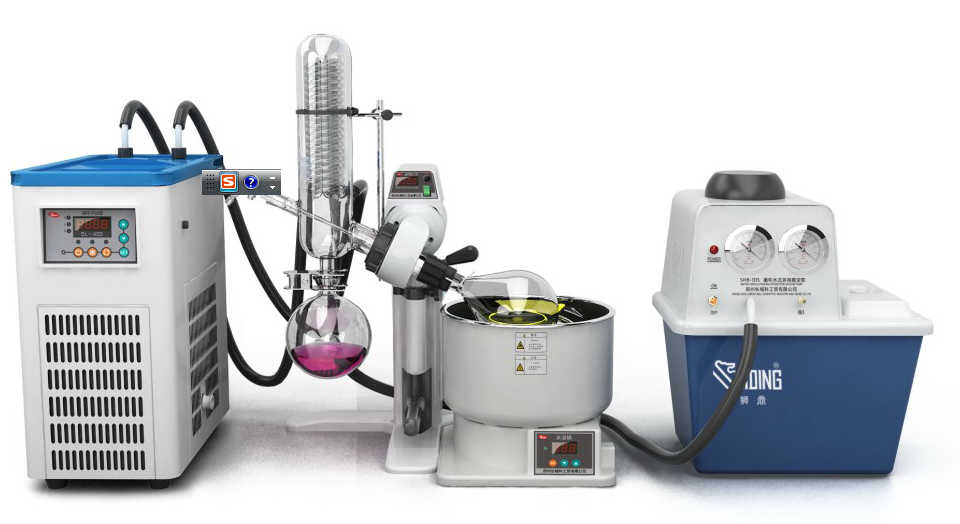

The equipment for purification distillation test rotates and shapes a thin film in negative pressure condition by heating, evaporates efficiently, and then condenses and recollects solvent to purify and separate. The products can be made into system devices with Multi-purpose Circulating Water Vacuum Pump, Diaphragm Vacuum Pump, Low Temperature CirculatingvacuumPump, Circulating Cooler, Constant Temperature Ccirculator, Low Temperature Ccooling Lliquid Circulating Pump.

●Double sealing with Teflon(PTFE) and fluorous rubber to ensure high vacuum degree.

●The air extraction nozzle of condenser is set down, and it is safer after connection with vacuum pipe.

●Building block design is easily to be extended.

●Easy operation of lifting, move up and down smoothly and easy to lock.

●Dedicated electric machinery, worm and gear drive steadily.

●Speed display ,operate visually and easily

●The temperature adopts PID control, which ensures accurate temperature control.

●The separation of bath and the mainframe makes configure flexible.

Parameters:

Model

R-1001-VN

R-1001-LN

Ambient temperature

535

Rotary speedrpm

10180

Evaporating speedml/min

20

Achievable vacuumPa

Below 3mmHg

Temperature range

Room temp100

Temperature display

Keypad input  Digital display

Speed-setting

Knob setting,  Digital display

Power Supply (V/Hz)

220/50

Rotary motor(W)

25

Heater wattagekW

1.5

Rotary bottleL

0.52

Collecting bottleL

1

Vacuum sealing

Double sealing rings made of Teflon + Vinton materials

Water Bath size mm

φ260×140

Water Bath volume(L)

7.4

Function of lifting table

Weight balancing Gliding elevating+ manual lifting

Elevating strokemm

100+150

Dimensions(mm)

560L×320W×660H

750L×320W×540H

Weightkg

9.5
