Center series ultra pure water (tap water inlet)
Advantages:
§ Urban drinking tap water inlet
§ Produce RO water and 18.2MΩ-cm ultrapure water

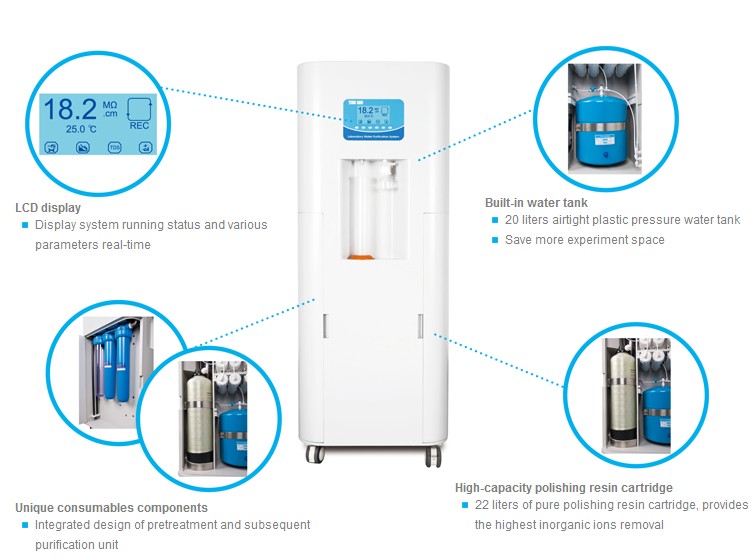

§ Built-in 20 liters water tank to save place
§ Unique design of consumables, easy for replacement
§ Can add external bucket, provide more water yield
§ Built-in system disinfection procedure
§ Built-in ultra-pure water pipe circulating system
§ 3 road on-line water quality monitoring
§ Timing, qualitative water function
§ Super-large LCD display
§ Automatic micro computer control system
§ Fault automatic detect by itself
Specifications:
|
|
|
|
|
|
|
Model
|
Standard
|
Eliminating endotoxin
|
Low TOC
|
Synthesizing
|
|
Center 60/90/120
|
Center 60/90/120 F
|
Center 60/90/120 V
|
Center60/90/120 FV
|
|
Output(25°C)
|
60series:60 Liters/hour , 90 series: 90Liters/hour ,120 series:120Liters/hour
|
|
|
|
Conductivity of RO water
|
< Conductivity of tap water×5%
|
|
Resistivity of ultrapure water(25°C)
|
18.2MΩ.cm
|
18.2MΩ.cm
|
18.2MΩ.cm
|
18.2MΩ.cm
|
|
TOC*
|
10ppb
|
10ppb
|
3ppb
|
3ppb
|
|
Endotoxin
|
-
|
<0.001EU/ml
|
-
|
<0.001EU/ml
|
|
Bacteria
|
<1CFU/ml
|
<1CFU/ml
|
<1CFU/ml
|
<1CFU/ml
|
|
Particle (>0.2µm)
|
<1/ml
|
<1/ml
|
<1/ml
|
<1/ml
|
|
Heavy metal ion
|
<0.1ppb
|
<0.1ppb
|
<0.1ppb
|
<0.1ppb
|
|
Feed water requirements
|
tap water,temperature:5-45°C,pressure:1.0-4.0Kgf/cm2
|
|
Dimension and weight
|
Length×Width×Height: 570×600×1500mm / Weight: about 60Kg
|
|
Electric requirements
|
AC110-220V,50/60Hz
|
|
Power
|
60 series:120W, 90/120 series:240W
|
| |
|
|
|
|
|
*The quality of output water accords with the quality of inlet water

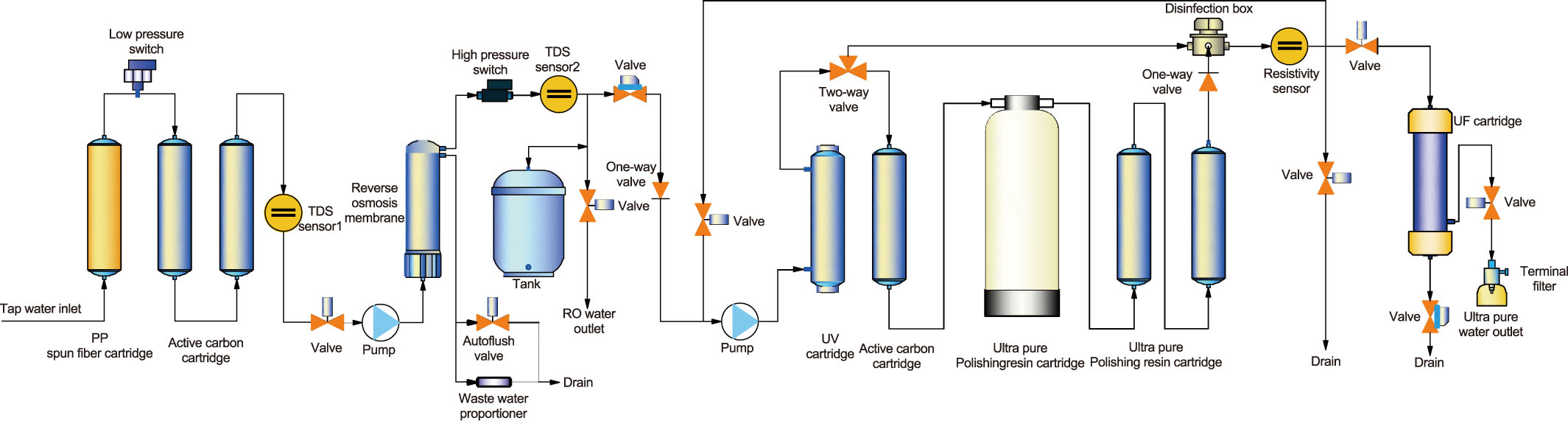

Flow chart:
|
