Center series(tap water inlet)
Advantages:
§ With tap water inlet, to produce RO water and ultrapure water, quality can reach to above10MΩ.cm.
§ Built-in 20 liters airtight plastic pressure water tank
§ Built-in 22 liters high-capacity polishing resin cartridge
§ Unique design and easy-to-replace consumables pack unit.
§ Data storage and RS 232/USB communication port.
§ 3-way online water quality sensor, multiple alarm.
§ Life-span of consumables' display and alarm.
§ System circulation function, system sterilization procedure.(optional)
§ Molding process, high-strength plastic shell, beautiful appearance.
§ The graphic display clearly indicates all system's parameters. From water quality to knowing when it is time to change the purification pack, you'll see at a glance what is need
§ For ease-of-use, the main purification technologies are contained in an innovative all-in-one pack that mean you can change it in just a couple of minutes.
§ The system requires no special installation, connect the system to your tap water supply - it's ready to use.
Specifications:
|
Model
|
Center 60D
|
Center 90D
|
Center 120D
|
|
Output(25°C)
|
60 Liters/hour
|
90 Liters/hour
|
120 Liters/hour
|
|
Conductivity of RO water
|
< Conductivity of tap water×5%
|
< Conductivity of tap water×5%
|
< Conductivity of tap water×5%
|
|
Resistivity of deionized water(25°C)
|
>10 MΩ.cm
|
>10 MΩ.cm
|
>10 MΩ.cm
|
|
Bacteria
|
<1CFU/ml
|
<1CFU/ml
|
<1CFU/ml
|
|
Particle (>0.2µm)
|
<1/ml
|
<1/ml
|
<1/ml
|
|
Feed water requirements
|
tap water,temperature:5-45°C,pressure:1.0-4.0Kgf/cm2
|
|
Dimension and Weight
|
Length×Width×Height: 570×600×1500mm / Weight: about 60Kg
|
|
Electric requirements
|
AC110-220V,50/60Hz
|
|
Power
|
120W
|
240W
|
240W
|
The quality of output water accords with the quality of inlet water

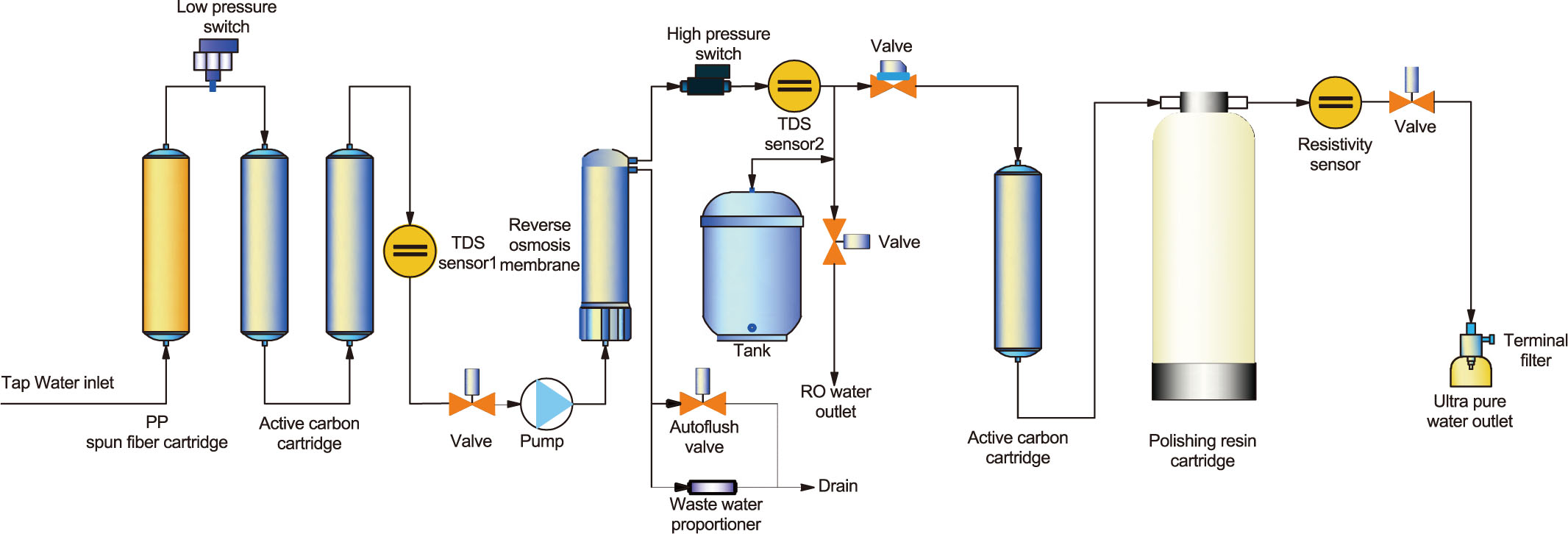

Flow chart:
|
