Dura series (tap water inlet)
Advantages:
§ Double stage reverse osmosis technology.
§ With tap water inlet, to produce double stage RO water and ultrapure water, quality can reach to18.2 MΩ.cm.

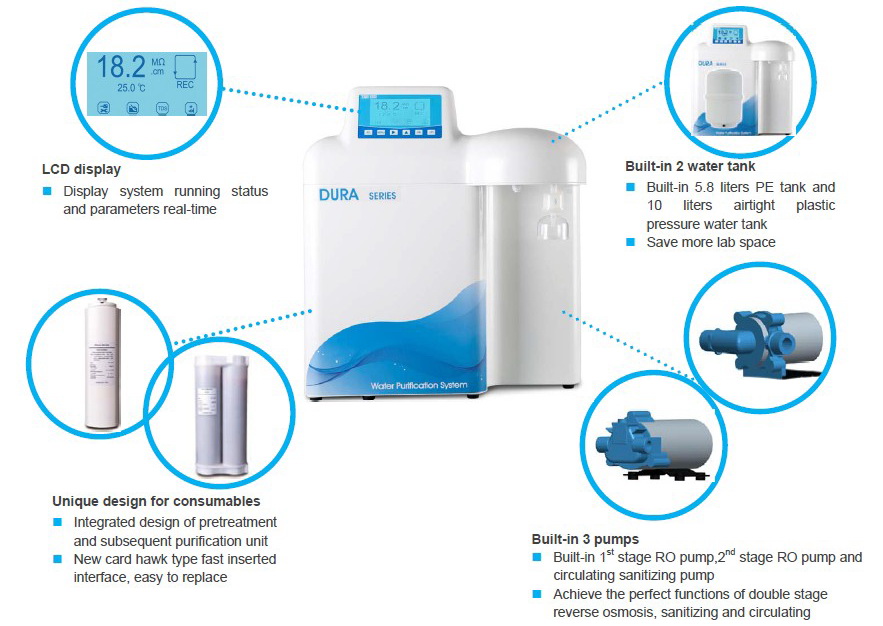

§ Built-in 5.8 liters PE tank and 10 liters airtight plastic pressure water tank.
§ Built-in 1st stage RO pump,2nd stage RO pump and circulating sanitizing pump.
§ Unique design and easy-to-replace consumables pack unit.
§ Data storage and RS 232/USB communication port.
§ 3-way online water quality sensor, multiple alarm.
§ Life-span of consumables' display and alarm.
§ System circulation function, system sterilization procedure.
§ The graphic display clearly indicates all system's parameters. From water quality to knowing when it is time to change the purification pack, you'll see at a glance what is need
§ For ease-of-use, the main purification technologies are contained in an innovative all-in-one pack that mean you can change it in just a couple of minutes.
§ The system requires no special installation, connect the system to your tap water supply - it's ready to use.
Specifications:
|
Model
|
Standard
|
Eliminating endotoxin
|
Low TOC
|
Synthesizing
|
|
Dura 12
|
Dura12F
|
Dura12V
|
Dura12FV
|
|
Dura 24
|
Dura24F
|
Dura24V
|
Dura24FV
|
|
Output(25°C)
|
12 series:12Liters/hour, 24 series:24 Liters/hour,
|
|
Flow rate(with pressure tank)
|
>1.5Liters/minute
|
>1.5Liters/minute
|
>1.5Liters/minute
|
>1.5Liters/minute
|
|
Resistivity of ultrapure water(25°C)
|
18.2MΩ.cm
|
18.2MΩ.cm
|
18.2MΩ.cm
|
18.2MΩ.cm
|
|
TOC*
|
10ppb
|
10ppb
|
3ppb
|
3ppb
|
|
Endotoxin
|
-
|
<0.001EU/ml
|
-
|
<0.001EU/ml
|
|
Bacteria
|
<1CFU/ml
|
<1CFU/ml
|
<1CFU/ml
|
<1CFU/ml
|
|
Particle (>0.1µm)
|
<1/ml
|
<1/ml
|
<1/ml
|
<1/ml
|
|
Heavy metal ion
|
<0.1ppb
|
<0.1ppb
|
<0.1ppb
|
<0.1ppb
|
|
Conductivity of 2 stage RO water
|
1-5µs/cm*
|
|
Feed water requirements
|
tap water, temperature:5-45°C,pressure:1.0-4.0Kgf/cm2
|
|
Dimension and weight
|
Length×Width×Height:545×470×610mm / Weight: about 20Kg
|
|
Electrical requirements
|
AC110-220V,50/60Hz
|
|
Power
|
240W
|
*The quality of output water accords with the quality of inlet water

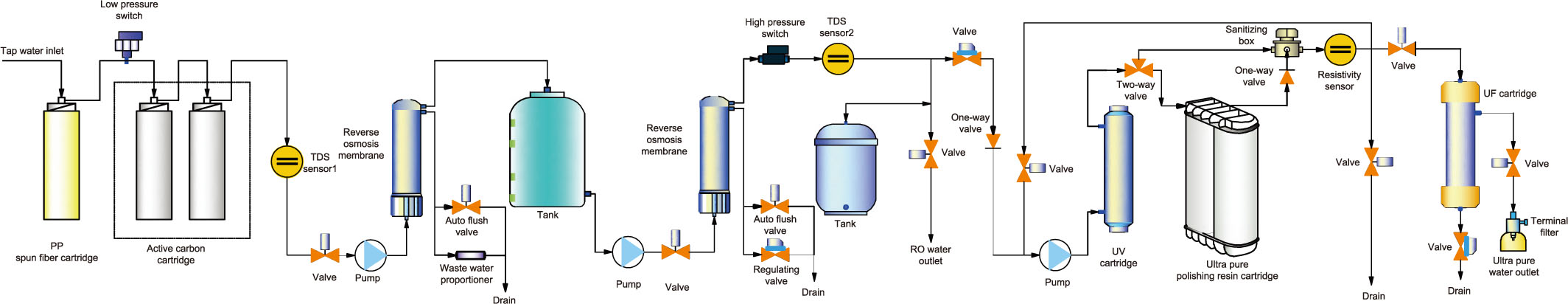

Flow chart:
|
