RO lab/RO DI series (Tap water inlet)

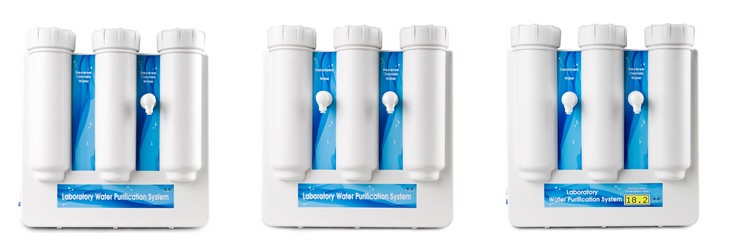

RO lab/RO DI series reverse osmosis/deionized water system (Tap water inlet)



Specification

RO system

RO deionized system

Model

RO lab

RO lab plus

RO DI/RO DI digital

RO DI plus/

RO DI digital plus

Flow procedure

PF+AC+RO+AC

PF+AC+RO+AC

PF+AC+RO+DI

PF+AC+RO+DI

Application

●Ware washing ●Agricultural expe

●Buffer disposing ●Physical and chemical analysis

●General biological expe ●Aquatic products feeding

●Fine chemistry industry ●GC/HPLC

●Inlet water for Ultra pure water machine

●Inlet water for Ultra pure water machine

●Inlet water for sterilizer/T&H chamber

●Aseptic drinking water

Feed water requirement

Tap water: TDS<200ppm,5-45°C,1.0-4.0Kgf/cm2

(if inlet TDS>200ppm,extra pretreatment is recommended)

Purification system

Pretreatment unit

Special spun fiber filter×1+Special active carbon block filter×1+Special active carbon block filter×1

RO unit

100GPD RO membrane×1

100GPD RO membrane×2

100GPD RO membrane×1

100GPD RO membrane×2

Subsequent unit

Post active carbon filter×1

Mixed bed resin cartridge×2

Mixed bed resin cartridge×3

Pure water

Desalination rate%

96-98*

Nearly 100*

quality

TDS

5-10 ppm*

RO water:5-10 ppm*



Resistivity

-

15-18.2MΩ.cm



Conductivity

-

0.067-0.055µs/cm

Output(25°C)

15 liters/hour*

30 liters/hour*

15 liters/hour*

30 liters/hour*

Flow rate

2 Liters/min(with pressure tank)

Pure water outlet

RO water

RO water, deionized water

Control system

Automatic electronic pressure sensor controlling, RO membrane auto flushing, automatic stop without water, automatic stop when water tank full, automatic cutting off water when pump stopping, guaranteeing 24 hours' work.

Water quality monitor

TDS test pen

TDS test pen +on-line resistivity monitor

Electric requirements

AC110-220V,50/60Hz, 48W plus model:72W

Dimension and weight

Length×Width×Height:41×22×42cm / 12-14kg

Standard configuration

Main body(including:1 set cartridge)+4.0 gallon water tank+TDS pen+accessory box



§  Inlet water :TDS=200ppm, 25°C, 50psi and 15% recovery rate.



§  GPD=gallon per day. 1gallon=3.78L.

§  The quality of inlet water will effect outlet’s and cartridge's life.

PF:Pretreating, AC:Active carbon, RO:Reverse osmosis, DI:Ion exchange.
