  View:Micropipette
  Repetitive pipette  |    Adjustable Micropipette  |    Adjustable & Autoclavable Micropipette  |    Large Capacity Micropipette  |    Fixed.Micropipette  |    Multi channel Micropipette  |    Accerissories Micropipette  |

L-2072

Product Description
Repetitive pipette is the ideal precision instrument for reducing the time associated with manual, long-series pipetting. Its increased volume selection provides outstanding flexibility and all-around support for research and routine tasks.


Features
Fine exterior
Easy read
More flexibility with 35 different volumes from 10 µL to 50 ml
Easy operation



Specification:

Continuous pipette (L-2072)

Gear Position

1

2

3

4

5

Filling Items

49

24

15

11

9

PD-Tip

Filling Volume

0.5ml

10μl

20μl

30μl

40μl

50μl

1.25ml

25μl

50μl

75μl

100μl

125μl

2.5ml

50μl

100μl

150μl

200μl

250μl

5.0ml

100μl

200μl

300μl

400μl

500μl

12.5ml

250μl

500μl

750μl

1000μl

1250μl

25.0ml

500μl

1000μl

1500μl

2000μl

2500μl

50.0ml

1000μl

2000μl

3000μl

4000μl

5000μl

Pipette with PD-Tip

Pipette Range

Repeatability

Error Rate

0.5ml

10-50

+/-0.9%

≤1.4to≤0.6

1.25ml

25-125

+/-0.9%

≤0.8to≤0.3

2.5ml

50-250

+/-0.8%

≤0.8to≤0.2

5.0ml

100-500

+/-0.6%

≤0.6to≤0.2

12.5ml

250-1250

+/-0.4%

≤0.4to≤0.2

25.0ml

500-2500

+/-0.4%

≤0.4to≤0.2

50.0ml

1000-5000

+/-0.4%

≤1.4to≤0.15

Remark

QNTY

20 pcs

G.W

8.0KG

MEAS

72*30*20cm

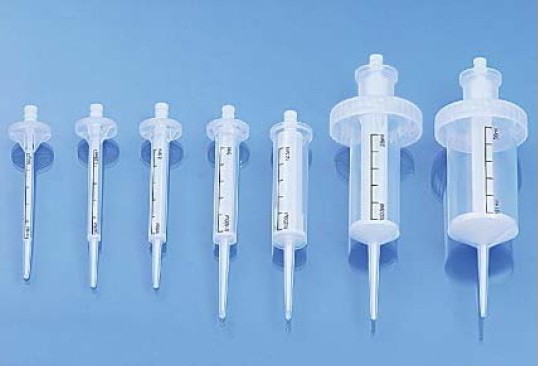

Syringes:

Model

Volume

QNTY

L-2073

0.50ml

1000pcs

L-2074

1.25ml

1000pcs

L-2075

2.50ml

1000pcs

L-2076

5.00ml

1000pcs

L-2077

12.50ml

1000pcs

L-2078

25.00ml

1000pcs

L-2079

50.00ml

1000pcs

L-2080

25/50ml

1000pcs
