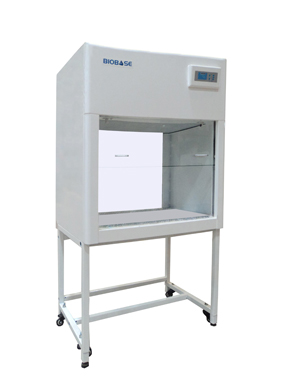

Vertical , BBS series
The laminar flow clean bench is a work bench or similar enclosure which has its own filtered air supply. It provides product protection by ensuring that the work in the bench is exposed only to HEPA-filtered air. Laminar flow clean benches are widely used in medical research laboratories, hospitals, manufacturing facilities and other research and production environment

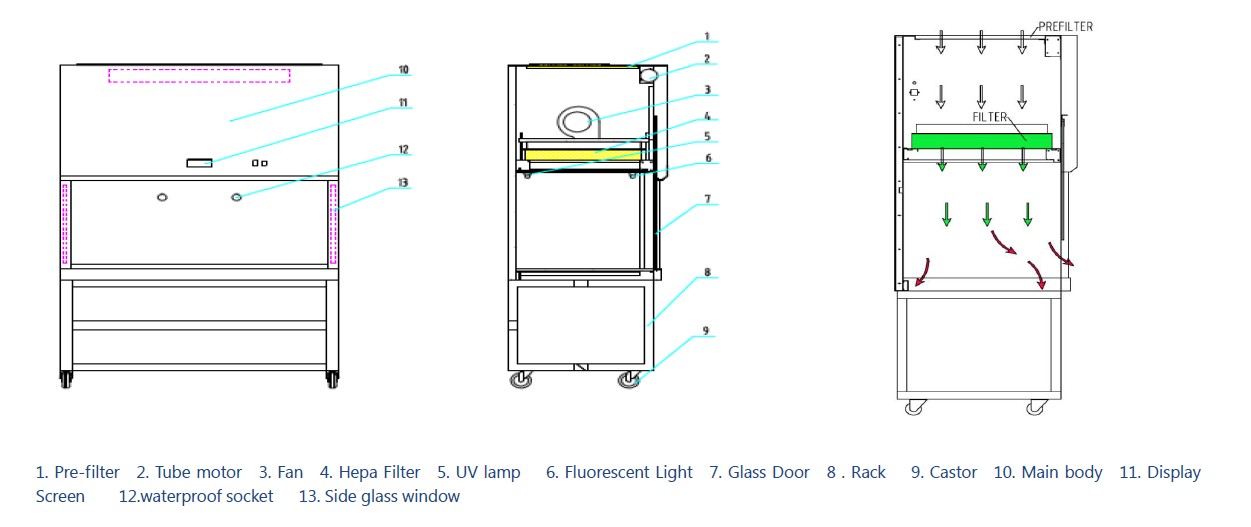

Vertical Laminar Flow Clean Bench Structure
In vertical flow models, filtered air is passed through the main chamber of the cabinet in a vertical laminar (unidirectional) air stream before being exhausted through the front opening of the cabinet
General Specifications, Vertical Laminar Flow Clean Benches
|
Model
|
BSC-680II
|
BBS-DDC
|
BBS-1300VGS
|
BBS- SDC
|
BBS-SDC2100
|
|
|
External size (W x D x H)
|
680x400x1158
|
1040×600×1730
|
1310*750*2000
|
1440*600*1730
|
2100*740*2550
|
|
|
Internal size (W x D x H)
|
630x375x615
|
940*580*540
|
1200*645*610
|
1340*580*540
|
2000*705*1100
|
|
|
Display
|
LED Digital display
|
|
|
Pre-Filter
|
Disposable, non-washable polyester fibre
|
|
|
HEPA Filter
|
Efficiency ＞99.995% at 0.3μm
|
|
|
Airflow Velocity
|
Laminar Airflow Velocity Average of 0.3~0.5m/s
|
|
|
Noise Level
|
<60 dBA
|
|
|
Fluorescent Lamp
|
14W*1
|
21W*1
|
28W*1
|
28W*1
|
36W*1
|
|
|
UV Lamp
|
15W*1
|
20W*1
|
30W*1
|
30W*1
|
30W*1
|
|
|
Power Consumption
|
160W
|
340W
|
600W
|
480W
|
1200W
|
|
|
Front Sash
|
Tempered glass, no less than 5mm,anti-ultraviolet radiation.
|
|
|
Main Body Material
|
Adopting cold-roll steel plate with corrosion-proof coating
|
|
|
Working Zone Material
|
304 stainless steel
|
|
|
Base Stand Material
|
Adopting cold-roll steel plate with corrosion-proof coating
|
|
|
Base Stand Height
|
650mm, Caster : Reverse Wheel with brake
|
|
|
Electrical
|
110~240V/50HZ/60HZ
|
|
|
Certification
|
ISO-9001,ISO-14001,ISO-13485,CE
|
|
|
Standard Accessory
|
Light, UV, Water and gas Tap,
|
Light, UV
|
Light, UV, Water and gas Tap, base stand
|
Light, UV
|
Light, UV
|
|
| |
| |
|
Net Weight
|
60kg
|
110kg
|
225kg
|
160kg
|
260kg
|
|
|
Shipping Weight
|
80kg
|
150kg
|
255kg
|
210kg
|
300kg
|
|
|
Package size
(W x D x H)
|
900x610x1360
|
1200*750*1920
|
1500*1040*1700
|
1580*745*1950
|
2250*1000*2200
|
|
|
