FH series
Features

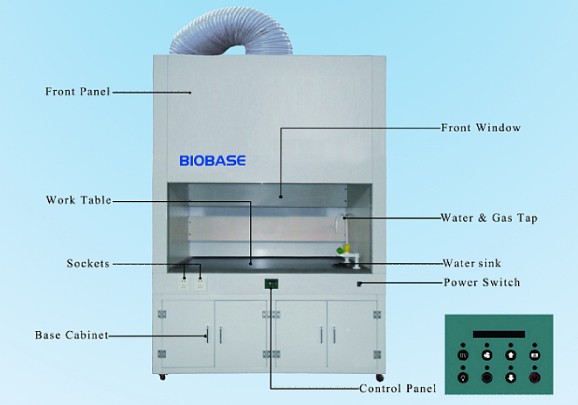

FH series Fume hoods are the first defense to minimize chemical exposure to research workers. They are considered the primary means of protection from inhalation of hazardous vapors. Our FH series have three models in total, the details, please see the following
Advance:
1.UV lamp.Aterilize the working area.
2.LCD displayscreen.See the air velocity directly.
3.The fan is inside.Easy to install,save time.
4.The air velocity is adjustable(6 levels).
Electrical controlled glass.
6.Removable work surface.Easy to clear
Technical parameters:
|
Model
|
FH-1000
|
FH-1200
|
FH-1500
|
FH-1800
|
|
Exterior Size
(L*W*H)mm
|
1000*750x2200
|
1200*800*2200
|
1500*800*2200
|
1800*800*2200
|
|
Work Area
(L*W*H)mm
|
820*620*750
|
1020*670*750
|
1320*670*750
|
1620*670*750
|
|
Base Cabinet (Optional)
|
Height is 620 mm, the exterior size include the cabinet height
|
|
Protection Class
|
Class I， Protection Type：IP 20
|
|
Air Velocity (m/s)
|
≥0.5m/s
|
|
Noise
|
≤60dB(A)
|
|
Pipe Collar
|
φ290
|
φ290
|
Φ290
|
Φ290
|
|
Pipe Strap
|
1pc
|
1 pc
|
1pc
|
1pc
|
|
Fluorescent Lamp
|
15W*1
|
21W*1
|
28W*1
|
36W*1
|
|
UV Lamp
|
20W*1
|
21W*1
|
30W*1
|
30W*1
|
|
Exhaust Duct
|
PVC, standard length: 4 meters
|
|
Blower
|
Centrifugal fan, speed adjustable. The fan inside the Fume Hood
|
|
Glass window
|
Two layer toughen glass, 5mm thickness; Motor control, height adjustable
|
|
Power supply
|
110-220V/50-60Hz(optional)
|
|
Power consumption
|
800W-1400W
|
|
Standard Accessory
|
Water tap: One, Water cup: one, Gas tap: two,
Air tap: one, Water proof socket: two
|
|
Material
|
Exterior body : Cold-roll steel sheets, coated with any-bacteria power
|
|
Interior: Adopts high grade melamine board with good acid and alkali resistance function
|
|
Work table: Using Solid Chemical-Resistant physiochemical board
|
|
Optional Accessory
|
Filter: 1.HEPA filter 2. Carbon active Filter 3. Chemical Filter
|
|
Net Weight(kg)
|
200
|
230
|
280
|
330
|
|
Gross Weight(kg)
|
260
|
300
|
400
|
450
|
|
Package Size（m）
|
Main body:
|
Main body:
|
Main body:
|
Main body:
|
|
1.14*0.9*1.72
|
1.34*0.9*1.76
|
1.66*1.01*1.84
|
1.95*0.95*1.9
|
|
Base Cabinet:
|
Base Cabinet:
|
Base Cabinet:
|
Base Cabinet:
|
|
1.14*0.9*0.9
|
1.34*0.9*0.97
|
1.66*0.95*0.8
|
1.95*0.95*0.86
|
|
