Mini-Plate Centrifuge ,MPC-25

 MPC-P25 Mini-Plate Centrifuge is the first one adopted an unique design for the horizontal rotor centrifuge (Patented)  in the world. The plate or tubes set into the rotor with 2pcs slope-rotor-shelf. It can quickly spin down droplets and condensation and is for use before and after therml cycling to improve PCR yield and other tests. The MPC-P25 combines functionality, easily operation and comfort – a lot of “high”

qualities to come standard in one compact micro-centrifuge

Features
1. Unique design for the horizontal rotor (Patented)
2. It can accept below formats:
        –  PCR standard plates with skirted, non-skirted
        –  Elisa Plates
        –  8x0.2ml PCR strip tubes
        –  0.2ml PCR tubes
3. Braking time from max.speed: lower than 30sec
4. Timer can be set up to 10minutes
5. Short-spin and timing of two operations make the tests more convenient
6. Streamline design with more compact shape and transparent PC lid

Specification

1. Capacity: 2pcs PCR plates with skirt or without skirt / Elisa plates

                      8x0.2ml PCR strip tubes / 0.2ml PCR tubes
2. Rotor Speed: 2,200rpm
3. G Force: 480×g

4. Timer: 0~10min
5. Dimensions: 290 x 360 x 140mm  (W x D x H)

6. Weight: 3.6kg
7. Power: AC120V/220V, 50-60Hz

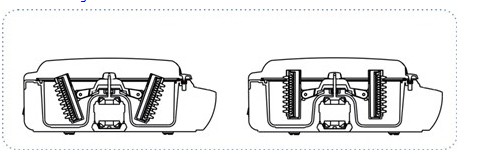

Functional diagram

 Before working                                                                             working

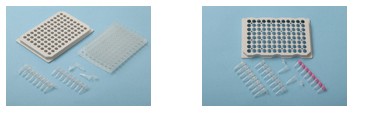

Adaptors for MPC-P25

Adaptor for PCR plates with              Adaptor for 8x0.2ml strip or
skirt and without skirt                         0.2ml PCR tubes
