BSC-IIIX
1,Complete sealed
Front window is sealed, and with pairs of gloves connecting to the operation area, product is transferred by the delivery window. And there is no out-connected valve
2,100% exhaust
100% air exhaust, no air recirculation, and air is exhausted by three ULPA filters and to the room directly. If the air needs to be exhausted to outdoors, another out connected duct need to be ordered, and extra duct and motor are required.
3,Complete negative pressure
The two motors design makes interior of cabinet is complete negative pressure, and can reach -274pa, triple layers filter film, ensures operation’s security, neither substance nor polluted air will leak out.
|

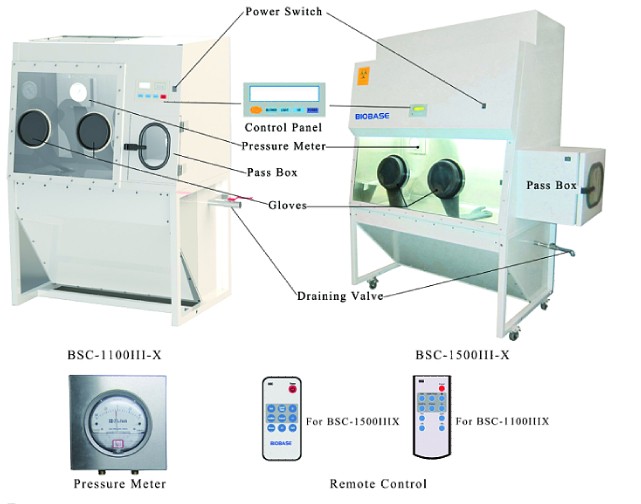

Model
|
BSC-1100IIIX
|
BSC-1500IIIX
|
|
|
External Size
|
1100— 800— 1600 mm
|
1340× 850× 2100 mm
|
|
|
(W × D × H)
|
|
|
Internal Size
|
750— 560— 600 mm
|
1240× 650× 650 mm
|
|
|
(W × D × H)
|
|
|
Pass Box Size
|
Internal Size: 390— 380— 330 mm
|
Internal Size: 400× 390× 340 mm
|
|
|
|
External Size: 480× 400× 400 mm
|
|
|
Gloves
|
One pair 800mm butyl rubber gloves
|
One pair 800mm butyl rubber gloves
|
|
|
Material
|
Work Surface: 304 stainless steel
|
Work Surface: 304 stainless steel
|
|
|
Body: Expoxy coated cold-rolled steel
|
Body: Expoxy coated cold-rolled steel
|
|
|
Air Velocity
|
More than 355 cfm
|
More than 355 cfm
|
|
|
Negative Work Zone Pressure
|
- 274 Pa
|
- 274 Pa
|
|
| |
|
Pre-filter
|
Washable
|
Washable
|
|
|
Main Filter
|
Air supply filter: ULPA filter 99.999% efficient(0.1-0.3 microns)
|
Air supply filter: ULPA filter 99.999% efficient(0.1-0.3 microns)
|
|
|
First exhaust filter: ULPA filter 99.999% efficient(0.1-0.3 microns)
|
First exhaust filter: ULPA filter 99.999% efficient(0.1-0.3 microns)
|
|
|
Second exhaust filter: ULPA filter 99.999% efficient(0.1-0.3 microns)
|
Second exhaust filter: ULPA filter 99.999% efficient(0.1-0.3 microns)
|
|
|
Noise
|
≤65 dB
|
≤ 61dB
|
|
|
Front Window
|
Toughened glass, thickness is no less than 8 mm
|
Toughened glass, thickness is no less than 8 mm
|
|
|
Display
|
LED
|
LED
|
|
|
Alarm
|
Visual and audio alarm
|
Visual and audio alarm
|
|
|
Lighting
|
≥ 800 lux
|
≥ 1000 lux
|
|
|
UV lamp
|
UV lamp for sterilization
|
UV lamp for sterilization
|
|
|
Power
|
110V~240V/50Hz~60Hz(Optional)
|
110V~240V/50Hz~60Hz(Optional)
|
|
|
Accessories
|
Gloves, fluorescent light, UV lamp, exhaust duct
|
Gloves, fluorescent light, UV lamp, exhaust motor and exhaust duct
|
|
|
