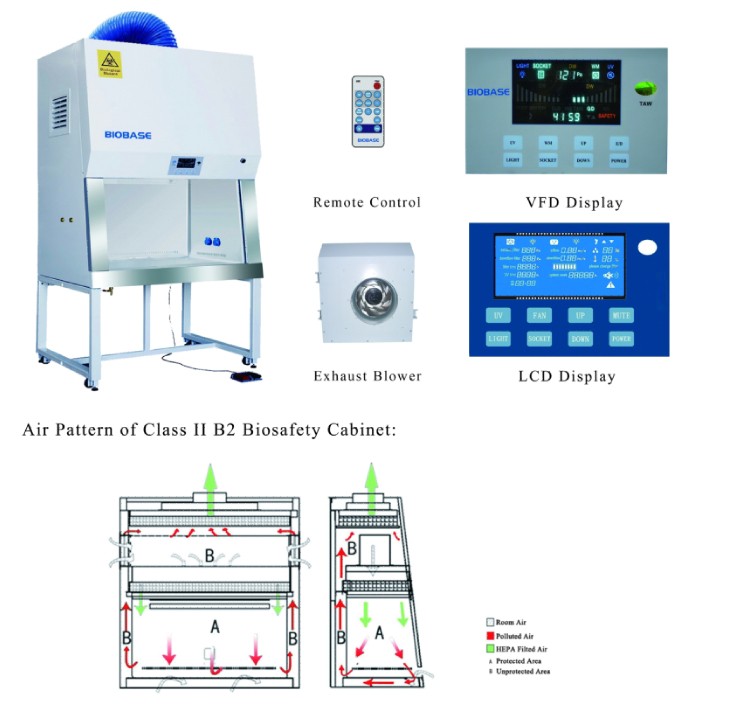

BSC-B2 series
Advantage
1Remote control. The operator need not to contact the biological safety cabinet directly, it’s favorable for preventing cross contamination. It also makes the control operation much easier and convenient.
2Foot Switch. Within the range of the activity, we could use foot switch to adjust the height of the front panel. It is our unique design.
3Work area surrounded by negative pressure.
4Timer function
5VFD display
6Filter life inquiry
According to the performance criteria:
1,US Standard ANSI/NSF49:2002
2,European Standard EN12469:2000
3,Chinese Standard YY0569-2005
|
Model
|
BSC-1100II B2-X
|
BSC-1300II B2-X
|
BSC-1500II B2-X
|
|
Parameter
|
|
Internal size(mm)
|
900×600×660
|
1100×600×660
|
1300×600×660
|
|
External size(mm)
|
1100×850×2200
|
1300×850×2200
|
1500×850×2265
|
|
Tested Opening
|
200 mm
|
|
Working Opening
|
400 mm
|
|
Inflow Velocity
|
0.53 m/s
|
|
Down Flow Velocity
|
0.33 m/s
|
|
Pre-filter
|
Washable
|
|
Filter
|
Two HEPA filter 99.999% efficient(0.3 microns)
|
|
Inner Blower
|
1
|
2
|
2
|
|
Exhaust Blower
|
1
|
|
Front Window
|
Two-layer toughened glass >5mm
|
|
Noise
|
≤65dB
|
|
UV lamp
|
20W×1
|
20W×1
|
30W×1
|
|
Fluorescent Lamp
|
21W×1
|
21W×1
|
28W×1
|
|
Lighting (Lux)
|
800
|
800
|
800
|
|
Power(W)
|
1500
|
1500
|
1500
|
|
Water and Gas Tap
|
Water Tap:1 Gas Tap: 1
|
|
Socket
|
2
|
|
Display
|
VFD display
|
|
Control System
|
Microprocessor
|
|
Airflow System:
|
0 air recirculation,100% air exhaust
|
|
Exhaust Duct
|
Material: PVC Diameter: 300mm
|
|
Material
|
Work zone interior is made of 304 stainless steel
|
|
Body: Expoxy coated cold rolled steel
|
|
Base Height
|
635 mm
|
|
Caster Wheel
|
Directional wheel
|
|
Clean Level
|
100
|
|
Electrical
|
110~240V/50~60Hz (optional)
|
|
Net weight (kg)
|
275
|
320
|
350
|
|
Gross weight(kg)
|
350
|
360
|
440
|
|
Package
|
Main Body
|
1250×1050×1870
|
1450×1050×1870
|
1640×1045×1860
|
|
(mm)
|
Exhaust Blower
|
1100×1000×900
|
700×600×1000
|
700×600×1000
|
|
Standard Configuration
|
Body, Remote control, Foot switch, UV lamp and Fluorescent Lamp, 4 meters exhaust duct, 1 exhaust blower
|
|
Optional Accessory
|
Armrest, Air curtain tester, Formalin fumigation sterilizer, Ammonium hydrogen carbonate neutralizer
|
|
