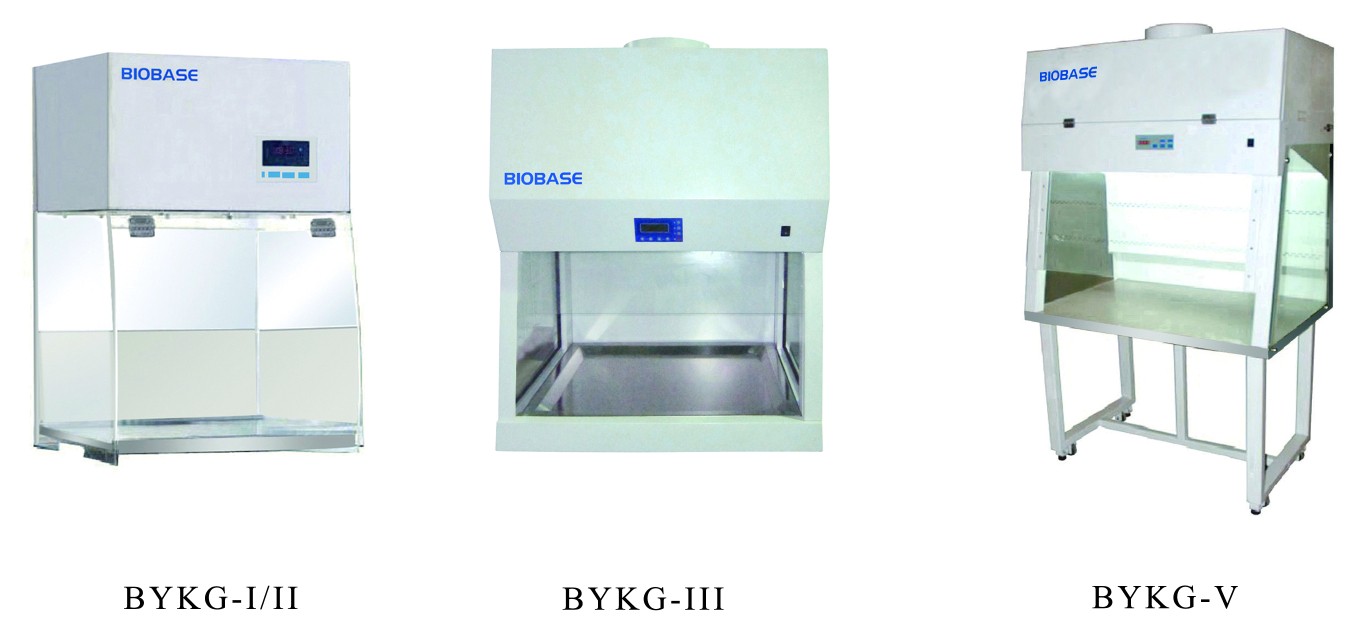

BYKG sereis
Introduction
1. Class I Biosafety Cabinet does not protect the product from contamination because un-purified room air constantly enters into work area.
2. As a partical containment unit, the Class I Biosafety Cabinet is suitable for work involving low to moderate risk agents (Biosafety Levels 1, 2 and 3) where there is a need for containment, but not for product protection.
3. Unlike conventional fume hood, the HEPA filter in the Class I Biosafety Cabinet protects the environment by filtering air before it is exhausted.
4. With the negative pressure, personnel protection is made possible by constant movement of air into the work area.
Features:
1. Soft touch control panel, LCD display.
2. UV lamp for sterilization.
3. Stable air flow system; provide firm protection to person and environment.
4. energy-saving, high efficiency, low noise.
5. One piece 304 stainless steel work stable, easy for cleaning.
Technical parameters:
|
Model
|
BYKG-I
|
BYKG-II
|
BYKG-Ⅲ
|
BYKG-Ⅴ
|
|
External Dimensions:mm
(W x D x H)
|
550*395*730
|
700*550*900
|
900*695*1080
|
1100*695*1924
|
|
Internal Dimensions
(W x D x H)
|
540*385*450
|
680*450*500
|
768*690*580
|
968*695*630
|
|
HEPA Filter
|
99.999%efficiency at 0.3 um
|
|
Airflow Velocity
|
0.38-0.6m/s
|
|
Noise Level
|
≤55 dB
|
|
Fluorescent Lamp
|
15W*1
|
18W*1
|
14W*2
|
21W*1
|
|
UV Lamp
|
15W*1
|
18W*1
|
20W*1
|
20W*1
|
|
Power Consumption
|
150W
|
160W
|
180W
|
400W
|
|
Woek surface height
|
No
|
740mm
|
|
Caster
|
No
|
Universal wheel
|
|
Main Body Construction
|
PMMA
|
Cold-rolled steel coated with anti-bacteria powder
|
|
Operation table
|
304 stainless steel
|
|
Electrical
|
110/220V±10% ,50HZ/60HZ
|
|
Standard Accessory
|
Fluorescent Light, UV lamp*2
|
Fluorescent Light, UV lamp*2 ,Based stand
|
|
