High-Quality Portable Colorimeter,NH310/NH300
1. Leading Humanity Design and Convenient Operation
a. Auto White and Black Calibration at Startup
b. Structure Design in line with Ergonomics
c. Easy-to-use Operator Interface
2. Stable Measurement Performance
a. The average fluctuation of △E is less than 0.06, actually more in 0.03~0.06.
b. Portable structure design which is more conductive to keeping the instrument stable when using.
3. Flexible and Accurate Locating
a. Camera locating can solve the problem of locating a small area. The minimum width of locating is 4mm.
b. Illumination locating is a fast, simple and convenient locating function which is the original function by 3nh.
4. More Measurement Modes
a. Three measuring apertures for more circumstances.
b. Five color spaces for more color schemes selection.
c. Three light sources for more circumstances.
5. PC Software—Realize More Function Expansion
a. 3nh has the intellectual property of PC software. The corresponding software serial number and password protection are configured in 3nh colorimeter.
b. Can perform color difference analysis, color difference cumulative analysis, chromaticity index, color sample database management, simulating object color, etc.
6. Advanced Power Management Design
a. 3nh is the first enterprise using high capacity Li-ion battery in colorimeter.
3nh Li-ion battery can be repeatedly charged which will save cost. Meanwhile, it can measure more than 3000 times on one charge to ensure the stability of long time measurement
Specifications of NH310 Colorimeter
|
Model
|
NH310
|
|
|
Display Mode/Color Space
|
CIE L*a*b; CIE XYZ; CIE RGB;CIEL*u*v; CIE*C*H; Whiteness &Yellowness; Color Fastness
|
|
|
Color Difference Formula
|
ΔE*ab; ΔL*ab; ΔE*C*H; ΔECIE94; ΔEHunter
|
|
|
Illuminating/viewing geometry
|
8/d (8°illumination angle/diffuse viewing)
|
|
| |
|
Light Source
|
LED blue light excitation
|
|
|
Detector
|
Silicon photoelectric diode
|
|
|
Measuring Aperture
|
Φ8mm; Φ4mm; Φ8mm extended aperture (optional)
|
|
|
Measuring Conditions
|
Observer: CIE 10° Standard Observer Illuminant: CIE Standard Illuminant D65; D50; A
|
|
| |
|
Measuring Range
|
L: 0 to 100
|
|
|
Repeatability
|
Standard deviation within ΔE*ab 0.06 (Measurement Conditions: Average of 30 measurements of standard white plate)
|
|
| |
| |
|
Minimum Interval Between Measurement
|
Approx. 1 sec
|
|
| |
|
Battery Life
|
More than 3000 measurements
|
|
|
Lamp Life
|
more than 1.6 million times in 5 years
|
|
|
Display
|
TFT True-color; 2.8 inch@(16:9)
|
|
|
Interface
|
Model B: USB RS-232: Baud rate 19200bps
|
|
| |
|
Operating Temperature Range
|
-10℃ to 40℃
|
|
|
Storage Temperature
|
-20℃ to 50℃
|
|
|
Humidity Range
|
less than 85% relative humidity, no condensation
|
|
|
Weight
|
500g
|
|
|
Dimensions
|
205 x 70 x 100 mm
|
|
|
Size of the Packing
|
435 x 205 x 345mm
|
|
|
Standard Accessories
|
AC Adapter; Li-ion Battery; Operation Manual; Software CD; USB Cable; White Calibration Cover; Φ8mm and Φ4mm Measuring Aperture
|
|
| |
| |
|
Optional Accessories
|
extended aperture(Φ8mm); Mini-printer; Printer Cable;

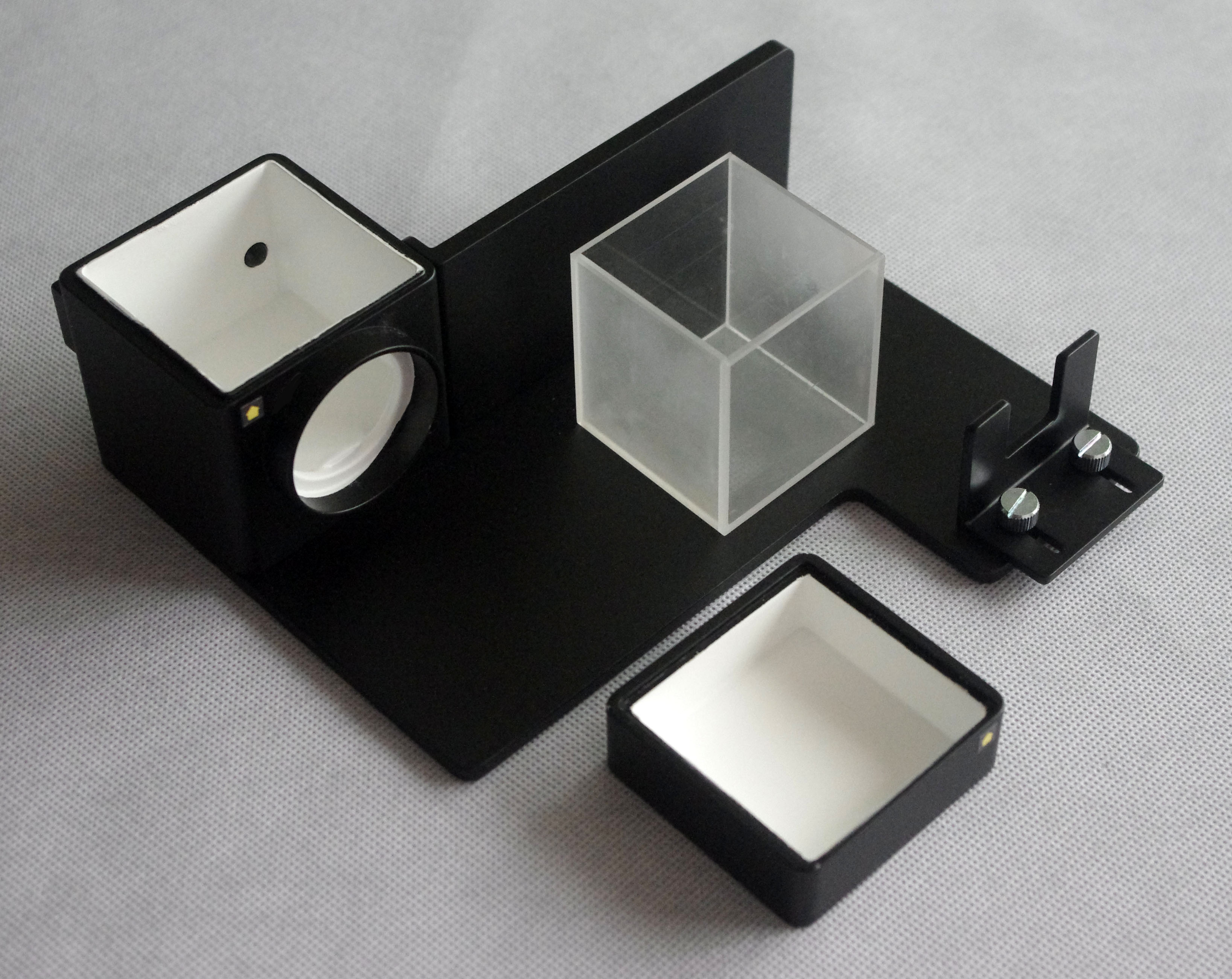

Powder Test Box; Universal Test Components
|
|
|
