  View:Freeze dryer

Freeze dryer ,SCIENTZ -10N

freeze dryer uses a technical method that freeze the watery element in advance, then sublimates its moisture content under the vacuum state to obtains the dry goods. Goods are easier for long-term preservation after the freeze-drying processing, and they can be restored to the original shape and form after being watered with the original biochemical peculiarity. For the hot sensitive substance such as antibiotic, the vaccine, the blood product, the enzyme hormone and other biological preparations, the freeze-drying technology can demonstrate its advantages.



    The Scientz-10N series freeze dryer uses the forced-air cooling condensation type refrigeration system, the stainless steel structure, the transparent drying chamber. It is more convenient for the observation of the entire process of freeze-drying.

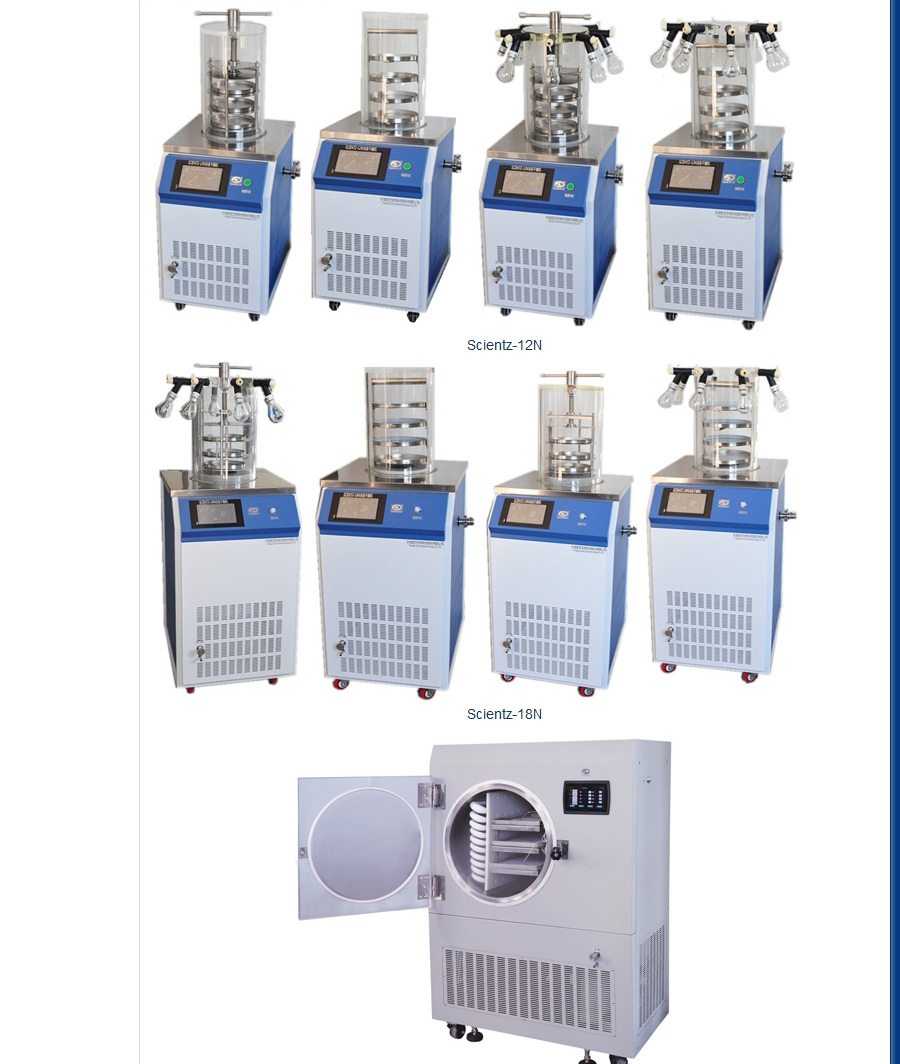

Scientz-10N series of table freeze dryer

 Scientz-10N freeze dryer is a set of mini-type table equipment , which is suitable for the freeze-dry test and smack production of lab samples.

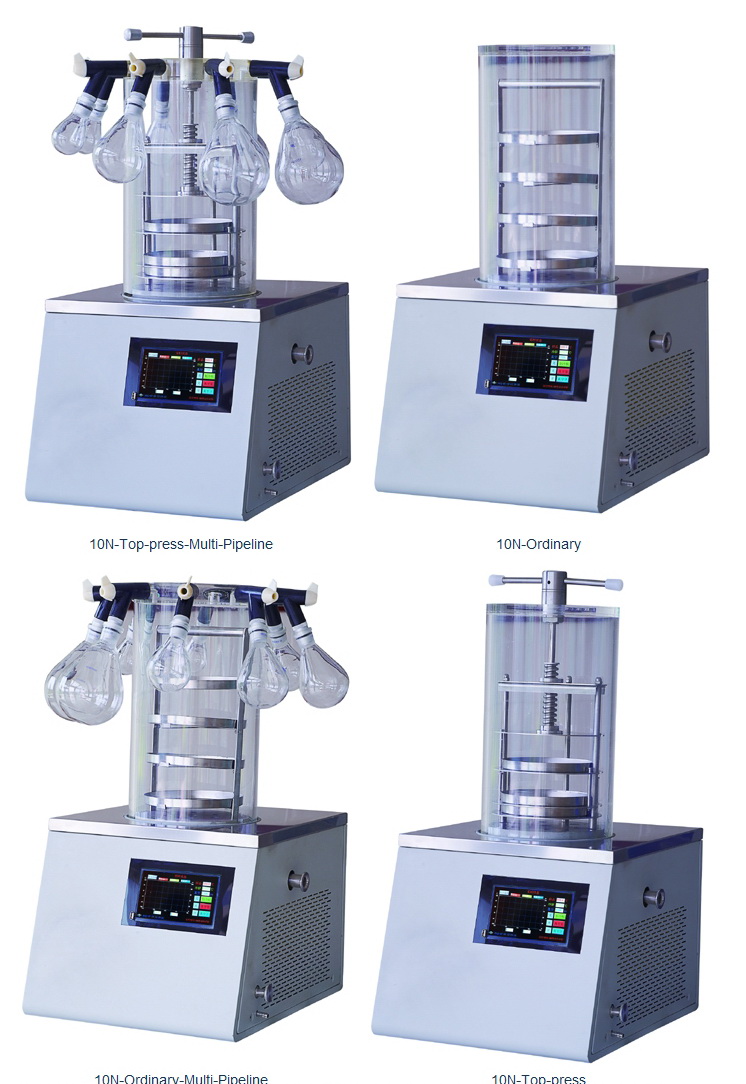

    This series has four types: Ordinary, Top-press, Multi-pipeline ordinary, Multi-pipeline Top-press.

 Specialty:

match the green environmental protection of international standard
LCD manifestation
Chinese interface, show freeze-drying curve
big openings of the cold trap, without coil pipe inside, have pre-freeze faction

Imported refrigerant compressor, high capability of water-capture, low noisy

all stainless steel wall, can bear corrosion, clean easily;
transparence the clock cover type dry room, safe, keep a view

stainless steel sample holder, can option the space between layers
small cubage, convenient operation ;
valve with nitrogen is optional.

Technique index:

Temperature<-50, -80 (optional)



vacuum :<15Pa



Freeze-dry acreage0.07-0.12m2



Water-Capture Capability3Kg/24h



Capacity0.7

1.2L







Size: 580×560×340(mm)



Material Tray: the diameter of material-dry tray is180mm, three layers; four layers; install the material about 900ml(material thickness 10mm), or placed 135 bottles, the diameter of 22mm.









Freeze dry time: about 24h(material thickness 10 mm)



Material Tray Stainless steel sample holder with special design, can option the space between layerscan enactment the number of layers, the diameter of material-dry tray is 200mm,four layers; Install the material about 1000ml(material thickness 10mm).



Freeze dried bottlehang 8 the bottles at most, have four specification1000ml500ml250ml100ml, independent assortment accord of the needs, the process of freeze dry renew the freeze dried bottle, freeze dry series of the samples, good fast, short time, easy and simple to operate. Equip the freeze device, make the sample freeze a thin layer structure, make for the water sublimation.



Freeze dry time: about 24h(material thickness 10 mm)
